340 Motorsports Aro18658 Stealth Fuel Tank – 16-Gallon Capacity

Description

340 Stealth Fuel Tank

Suit 1969 Camaro With -6AN Inlet/Outlet & Return

ARO18658

O18658

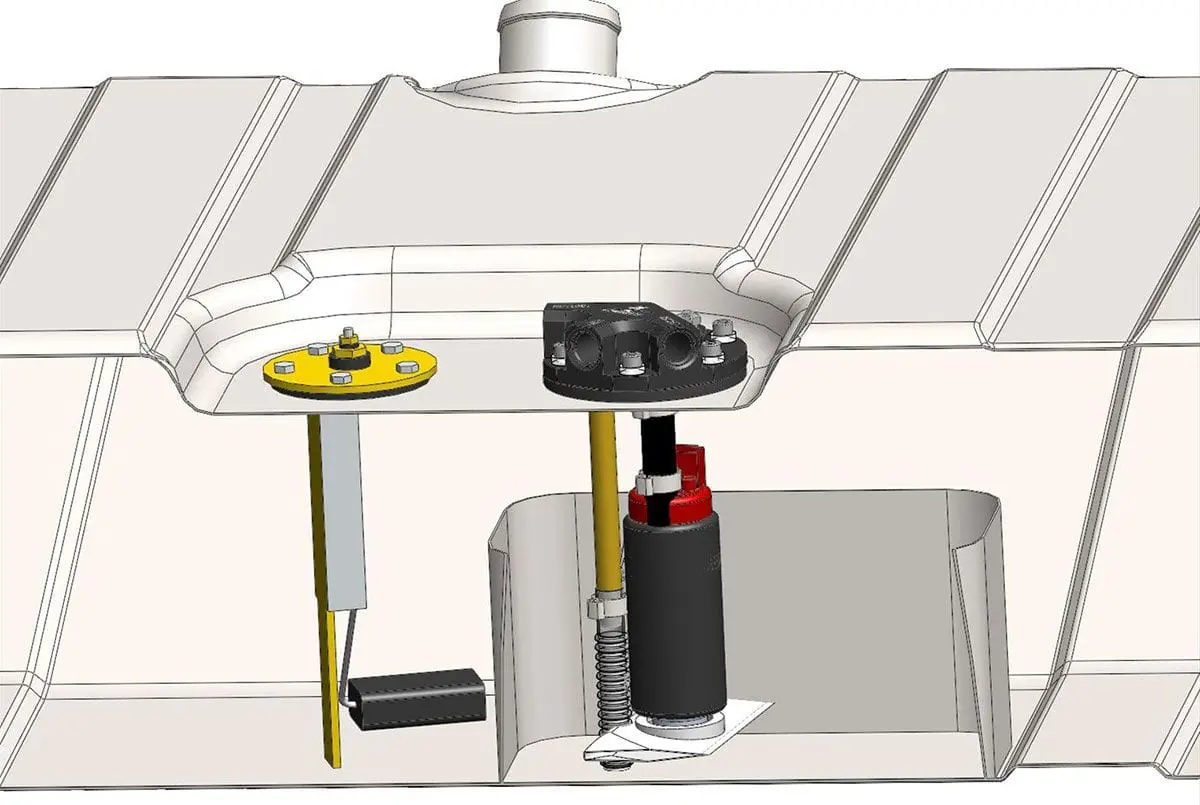

These Aeromotive 340 Stealth fuel tanks feature our ground breaking 340 Stealth electric fuel pump mounted to our CNC machined, billet aluminium hat and hanger assembly. With an incredible 340 lph flow, using a turbine pumping mechanism for increased durability and quiet operation, the Stealth Tank is equipped with the most proven, powerful, quiet operating fuel pump available in it’s class.All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lower fuel levels. A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed. The 340 Stealth pump has its own pre-pump filter sock for protection and is supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and vent ports, ensuring high flow capacity and a positive, leak free seal at any pressure.For extra protection and long-term good looks, most Stealth tanks are finished with a silver powder-coat exterior. Exceptions to this are the early Mustang and 32-34 Ford Stealth Tanks, which are painted silver, allowing them to be prepped and painted later to match the car if desired.Perfect for EFI and carbureted enginesOEM appearance and 18-gallon capacityDurable, powder-coat silver exterior finishHigh flow, quiet 340 Stealth in-tank fuel pumpWide, lateral internal surge baffleLarge, EFI friendly fuel pump reservoir0-90 Ohm fuel level sending unitBillet hat with ORB-06 outlet, return, vent portsFully assembled out of the box, ready to install340 Stealth Tank Application Specs:Fuel Injected Engines (gasoline)Up to 850 HP – naturally aspirated.Up to 700 HP – forced air induction.Carbureted Engines (gasoline)Up to 1000 HP – naturally aspirated.Up to 800 HP – forced air induction.
