Description
Product Details
In The Box

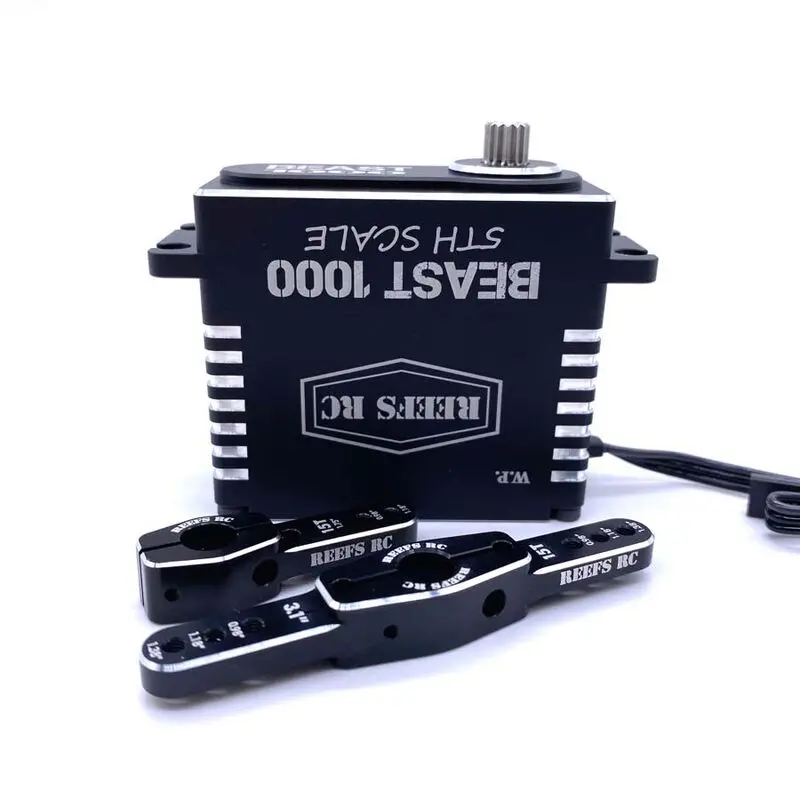

- (1) BEAST 1000 Servo
- (1) REEFS Single Horn
- (1) REEFS Double Horn
- (1) Servo Horn Screw 3.5x8mm
- (3) 3x16mm Cap Head Screws for end of horns
- (4) 2mm Horn Clamping Cap Head Screws
Product Specifications
| Deadband | 2µs |
| Input Voltage | 4.8V ~ 8.4V |
| Product Height | 2.32″ (59 mm) |
| Servo Type | Digital |
| Current Draw Idle | 550mA @ 4.8V, 600mA @ 6.0V, 700mA @ 7.4V, 820mA @ 8.4V |
| Product Width | 1.18″ (30 mm) |
| Servo Size Category | Giant Scale |
| Maximum Servo Torque | 800oz/in @ 6V, 900oz/in @ 7.4V, 1080oz/in @ 8.4V |
| Current Draw Stall | 8.8A @ 4.8V, 9.8A @ 6.0V, 10.5A @ 7.4V, 11A @ 8.4V |
| Bearing | 5 Ball Bearings |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 22 AWG |
| Product Length | 2.59″ (66 mm) |
| Servo Operating Voltage | 4.8 – 8.4V (HV) |
| Connector Type | Universal |
| Application | 1/5 Cars, Trucks |
| Maximum Servo Speed | 0.11 sec/60 deg @ 6.0V, 0.095 sec/60 deg @ 7.4V, 0.08 sec/60 Deg @ 8.4V |
| Product Weight | 10oz (285g) |
| Spline Count | 15 – Tooth |
| Water-Resistant | Yes |
