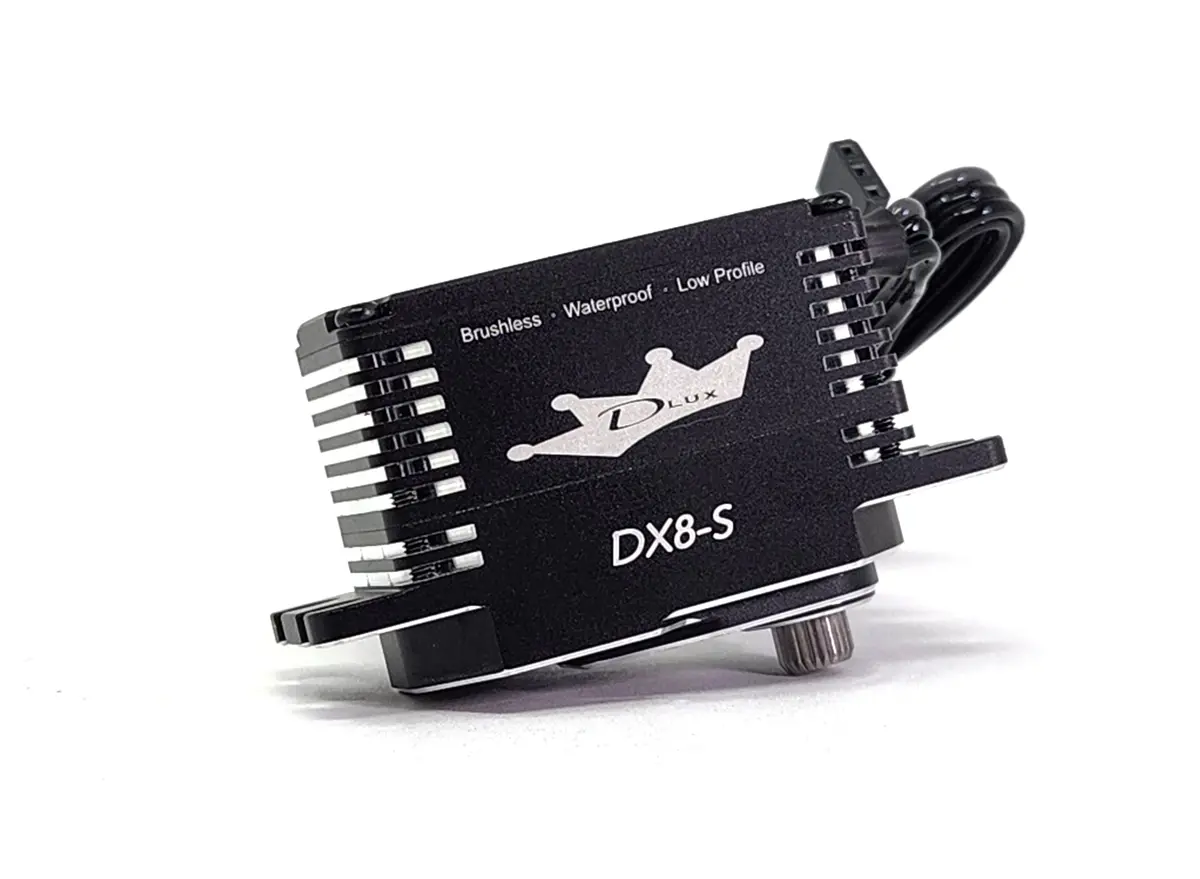

Dlux DX8-S High-Precision Digital Servo

Description

Product Details

All new Dlux DX8-S low profile servo

Specs;
Waterproof (IP67 rated)
Voltage 4.8V – 8.4V
Steel Gears
Magnetic angle sensor
4 Pole brushless motor
CNC aluminum case
Spline: 25T
Weight: 73g, 2.5oz
Dimension L W H: 40.8 x 20.2 x 30.7mm (1.6″ x .79″ x 1.2″)

Torque:
800oz (57.6kg), 8.4V
715oz (51.5kg), 7.4v
635oz (45.7kg), 6V

Speed:
.09sec, 8.4V
.10sec, 7.4V
.12sec, 6V

No load Current: 580mA, 8.4V – 540mA, 7.4V – 500mA, 6.0V

Full Load Current: 7500mA, 8.4V – 6800mA, 7.4V – 6000mA, 6.0V
