Description

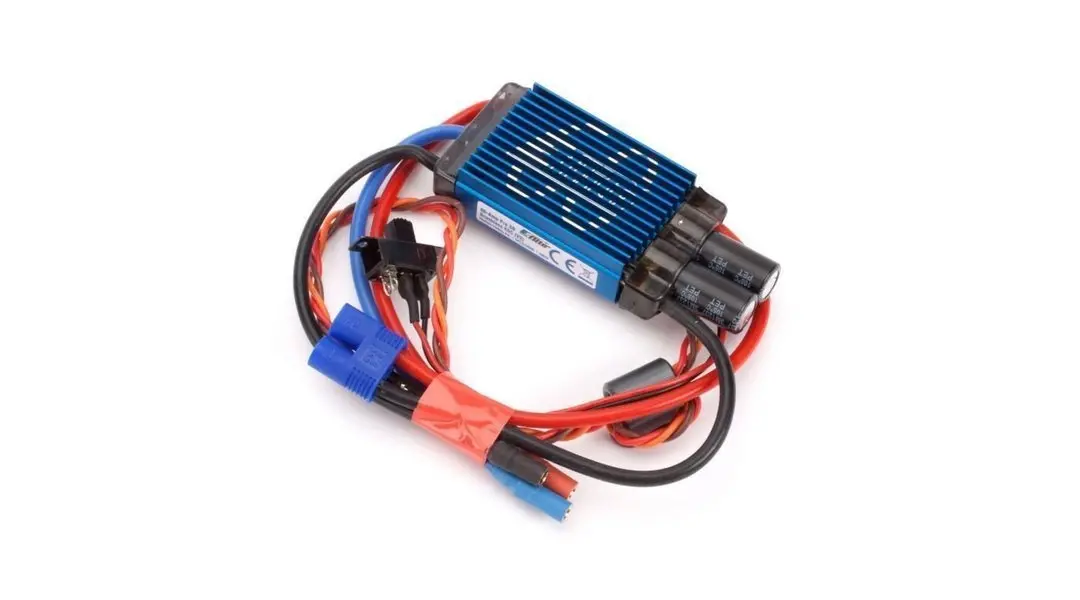

The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Key Features
- Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)
- 5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Finned heat sinks
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms€“1.9ms or 1.2ms€“1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing€”5 user-selectable ranges for use with a large variety of brushless motors
- Utilizes new smaller MOSFET technology to minimize weight
- Radio system power on/off switch
- Pre-wired connectors€”E-flite® EC3„¢ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Specs
| Amperage: | 40-60 |
| Brakes: | Yes – Programmable |
| Cells w/BEC: | 3-6S Li-Po or 9-18 Ni-MH/Ni-Cd |
| Input Connector Types: | EC3 |
| Input Voltage: | 10.8V – 22.2V |
| Momentary Peak Current: | 15 sec @ 75A with proper cooling air flow |
| Output Connector Types: | 3.5mm Bullet |
| Wire Gauge: | 13 AWG |
