Description

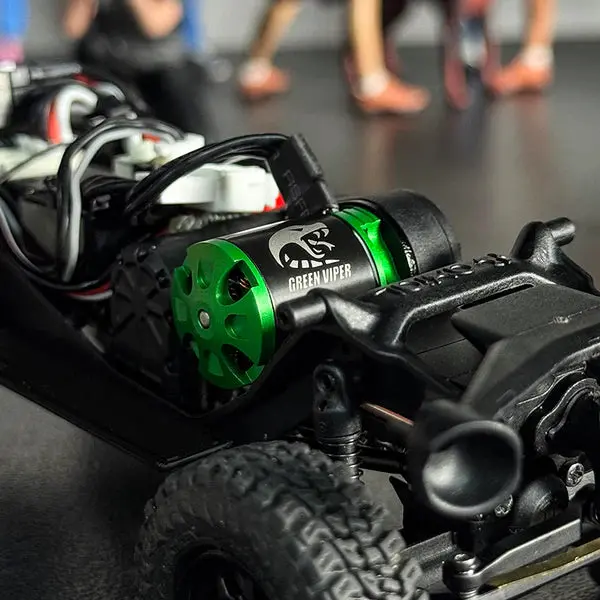

injINJORA Green Viper 1621 Brushless Motor for 1/30 Axial SCX30
Note:
- Not compatible with the stock SCX30 ESC or transmitter.
- Only compatible with the INJORA MBL32 ESC. A transmitter and receiver with a CH2 port are required for use with the MBL32 ESC.
- Please use 2S batteries only. Never use 3S batteries, as this may burn out the motor!
Features:
- Runs quieter than brushed systems, with reduced motor noise
- Includes a protective sleeve at the wire outlet for enhanced durability
- Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds
Specifications:
- Model Number: 1621
- Motor Type: Sensorless Brushless Outrunner
- Waterproof: Yes
- Operating Voltage: 7.4V (2S LiPo)
- RPM/Volt: 3600KV
- Motor Slots: 9
- Motor Poles: 12
- No-Load Current (7.4V): 0.8A
- Max Current: 12A
- Motor Connectors: PH2.0 3-pin
- Dimensions: Φ15.5×21.5mm
- Motor Output Shaft: Φ1.7mm
- Motor Pinion: 0.3mod 11T
- Lead Length: 65mm
- Weight: 14.9g
Package List:
1 × 1621 Brushless Motor
