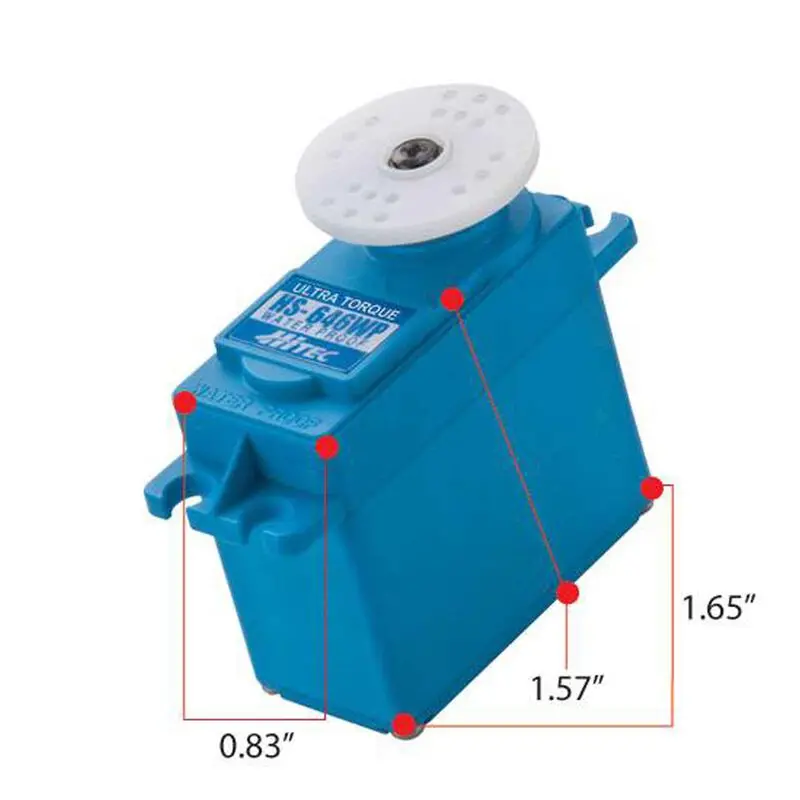

HS-646WP Standard Digital Waterproof Metal Gear Servo – HRC32646W
Hitec’s waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, these analog waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-646WP will dependably keep your mind at ease.
- Speed: @4.8V .20sec/60′ / @6.0V .17sec/60′
- Torque: @4.8V 133.32oz/in / @6.0V 161.09oz/in
- Industry’s First IP67-Rated Waterproof Case
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP First Gear
- Dual Ball Bearing-Supported Output Shaft
- 7.4v 2-Cell LiPo Capability
- Programmable Circuitry
In The Box
- (1) HS-646WP Standard Digital Waterproof Metal Gear Servo
Product Specifications
| Deadband | 4µs |
| Input Voltage | 6.0V ~ 7.4V |
| Product Height | 1.57″ (40 mm) |
| Servo Type | Digital |
| Current Draw Idle | 8 mA |
| Product Width | 0.83″ (21 mm) |
| Maximum Servo Torque | 133oz/in @ 6.0V, 161oz/in @ 7.4V |
| Spline Count | 24 – Tooth |
| Water-Resistant | Yes |
| Application | Sport Aircraft, Cars, Boats |
| Product Weight | 2.12oz (60.0g) |
| Current Draw Stall | 2,200 mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 6.0 – 7.4V (HV) |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 22 AWG |
| Connector Type | Universal |
| Maximum Servo Speed | 0.20 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V |
| Product Length | 1.65″ (42 mm) |
| Programmable | No |
| Servo Size Category | Standard |
