Description

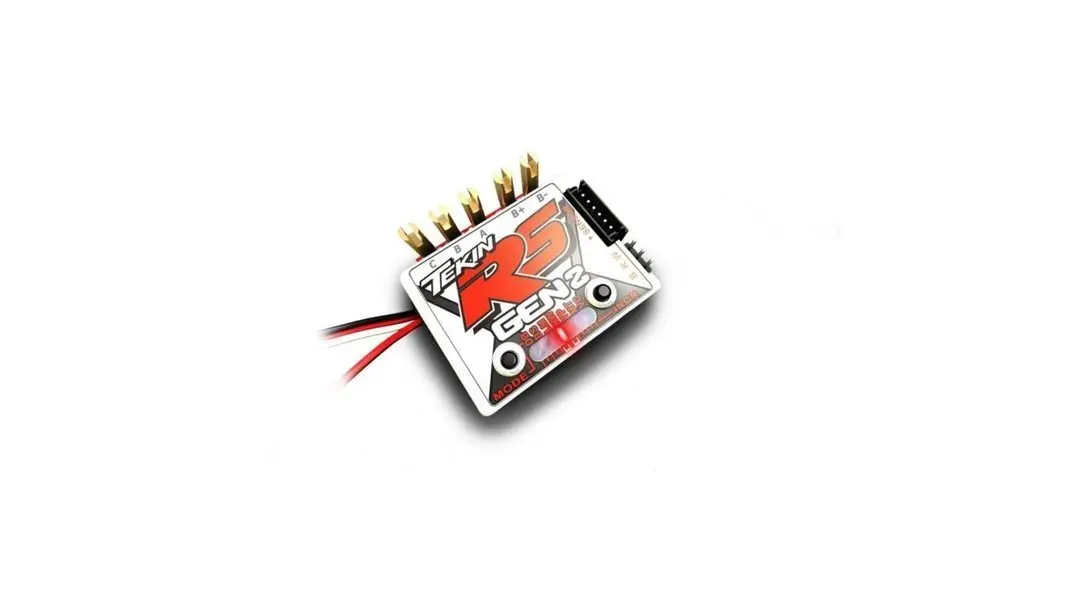

The RS GEN2 brushless speed control is the next generation in intelligent operating motor drive technology. Continuing the proven award-winning legacy of the RS familly, the GEN2 is fitted with todays state of the art components. The RS GEN2 delivers what racers require; reliability, precise control and unmatched power handling capability.
Packed with new features, the RS GEN2 delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Rated for 8.5 turn motors and higher, the GEN2 is the perfect ESC for both experienced and new racers. Couple the RS GEN2 with a Redline GEN2 brushless motor for the ultimate package in race equipment.
Key Features
- Ultra-smooth and Precise Throttle and Braking Control
- Compatible with Sensored/Sensorless Brushless and Brushed Motors
- Easily Access Programming, Anywhere, Anytime
- Datalogging Capability
- High Voltage Programmable BEC
- EZ Access HotWire Programming Port
- HotWire PC Interface for Advanced Programming and Updating
- D2: Dual Drive Mode Technology
- On-Board Temperature Indicator
- HDAC: High Density Copper PCB’s
- Sensor Plug for Precise Commutation with all Motors
- Gold-plated Solder Posts for Easy Wire Replacement
- Self Test Diagnostics and Factory Reset
- Pit Tune Mode
- DGF2: Digital Glitch Filtering V2
- QuickTune„¢ Programming
- One-Touch Radio Calibration
Specs
- Controls: Forward/Brake/Reverse
- Input Voltage: 2-3S LiPo / 4-9S NiMH-NiCD
- BEC: 6.0v / 7.4v @ 5.5amps
- Motor Limit Brushless Mode 2S: 8.5 Turn 2-pole 36mm Can
- Motor Limit Brushless Mode 3S: 10.5 Turn 2-pole 36mm Can
- Motor Limit Brushed 2S: 12 Turn 36mm Can
- Motor Limit Brushed 3S: 20 Turn 36mm Can
- Max Chassis Weight: 4lbs / 1815g
- Throttle Profiles: 7 choices (on board)
- Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
- Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
- Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
- Weight: .85oz / 24g
