Description
49SubMicro Tabs are recommended for multi use installs.

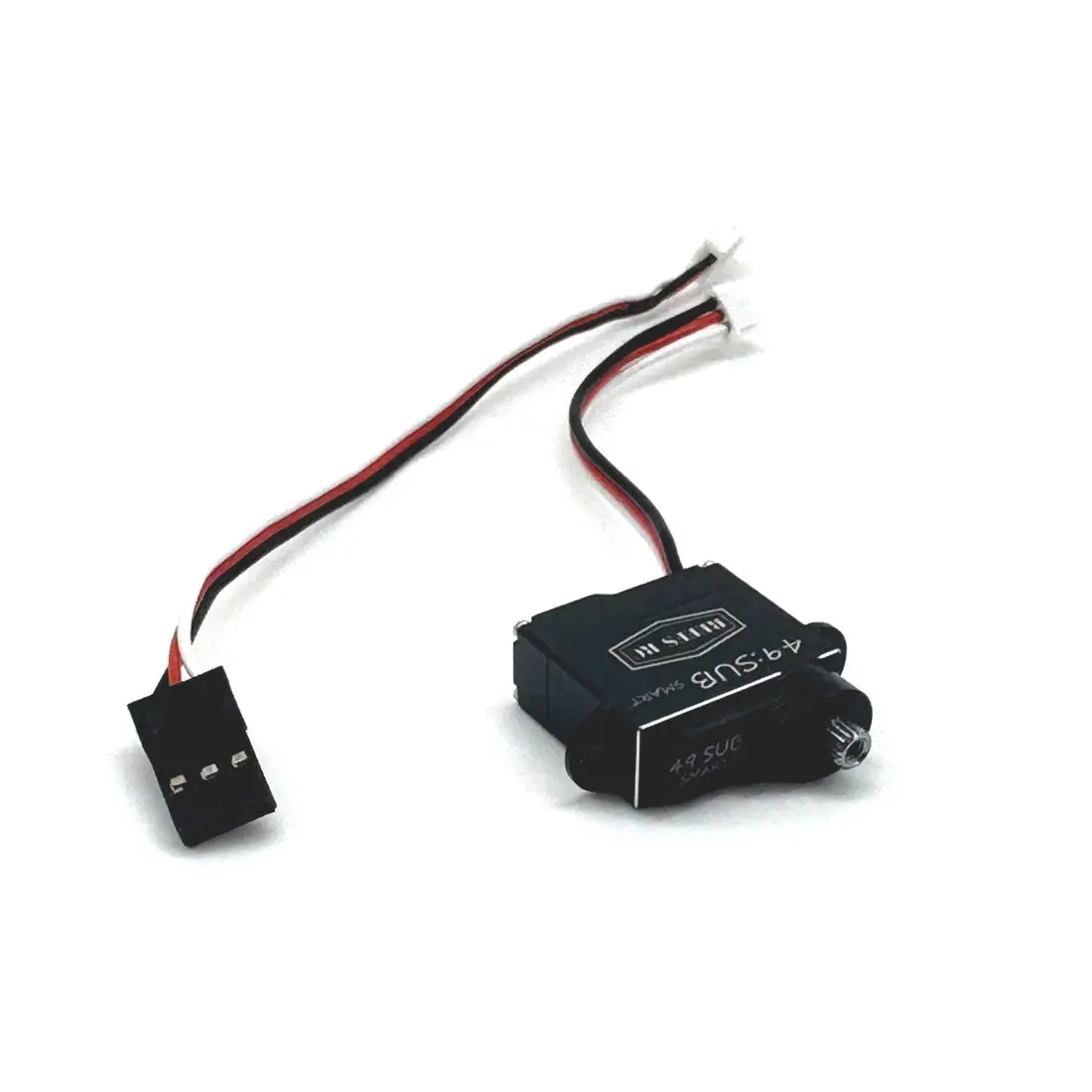

High Torque High Speed
Servo / Winch
Military Grade Construction
Pulse Width Modulation Control
SMART Chip Technology
REEFS LINK required for Programming
(Optional) Comes as Servo
Voltage 4.8v – 8.4v
Internal: Metal Gears
CNC Aluminum Casing
Sealed Bearing
Temp Rate: -15C°~ +70C
Operating Travel: 180°±10°
Mechanical Angle: No Limit
Motor Drive: IC Drive
Weight: .24oz / 7g
20 x 8 x 17.8 mm (LWH)
Torque: 37oz (2.7kg)@ 6.0v
43oz (3.2kg)@ 7.4v
49oz (3.5kg)@ 8.4v
Speed: .075 sec @ 6.0v
.058 sec @ 7.4v
.05 sec @ 8.4v
Spline: 20Tφ4.0mm
Dead Band Width: 2¦Ìs
BEC Not Required,
Recommended for Max Perf.
UnloadCurrent
120mA@4.8V
150mA@6.0V
200mA@7.4V
230mA@8.4V
LoadingCurrent
800mA@4.8V
1000mA@6.0V
1200mA@7.4V
1400mA@8.4V
REEFS207
