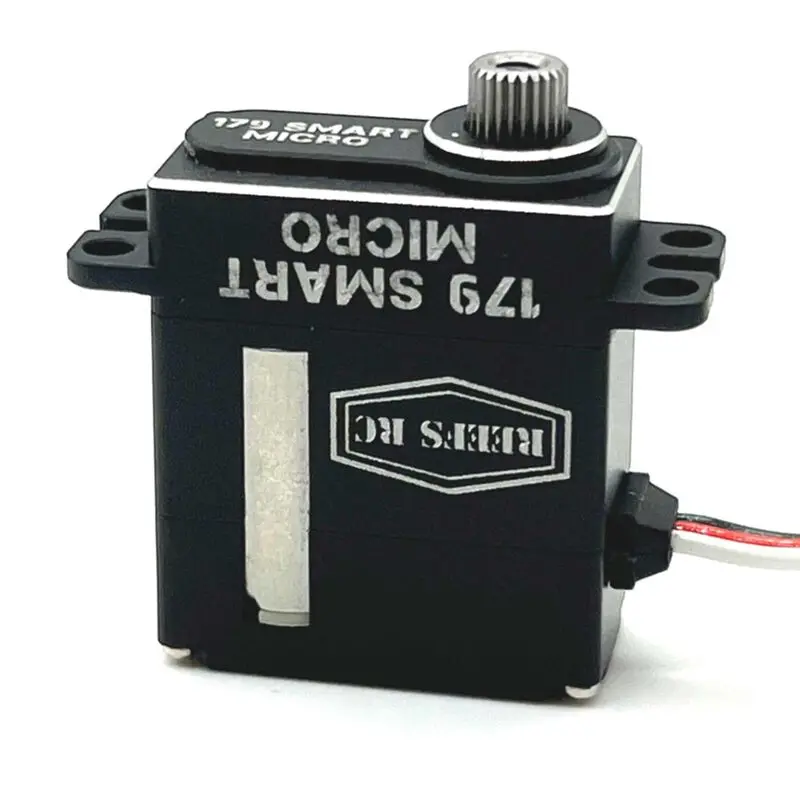

Description
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
Product Specifications
| Maximum Servo Torque | 135oz/in @ 6.0V, 159oz/in @ 7.4V, 179oz/in @ 8.4V |
| Current Draw Stall | 1.6A @ 4.8V, 2A @ 6.0V, 2.2A @ 7.4V, 2.4A @ 8.4V |
| Servo Operating Voltage | 6.0 – 8.4V (HV) |
| Programmable | Yes |
| Servo Size Category | Micro |
| Current Draw Idle | 150mA @ 4.8V, 180mA @ 6.0V, 240mA @ 7.4V, 300mA @ 8.4V |
| Product Width | 0.9″ (23 mm) |
| Deadband | 2µs |
| Product Height | 0.47″ (12 mm) |
| Servo Type | Digital |
| Connector Type | Universal |
| Maximum Servo Speed | 0.09 sec/60 deg @ 6.0V, 0.07 sec/60 deg @ 7.4V, 0.06 sec/60 deg @ 8.4V |
| Product Length | 1.08″ (27 mm) |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Application | 1/16 – 1/18 Cars, Trucks |
| Product Weight | 0.74oz (21g) |
| Spline Count | 25 – Tooth |
| Water-Resistant | Yes |
