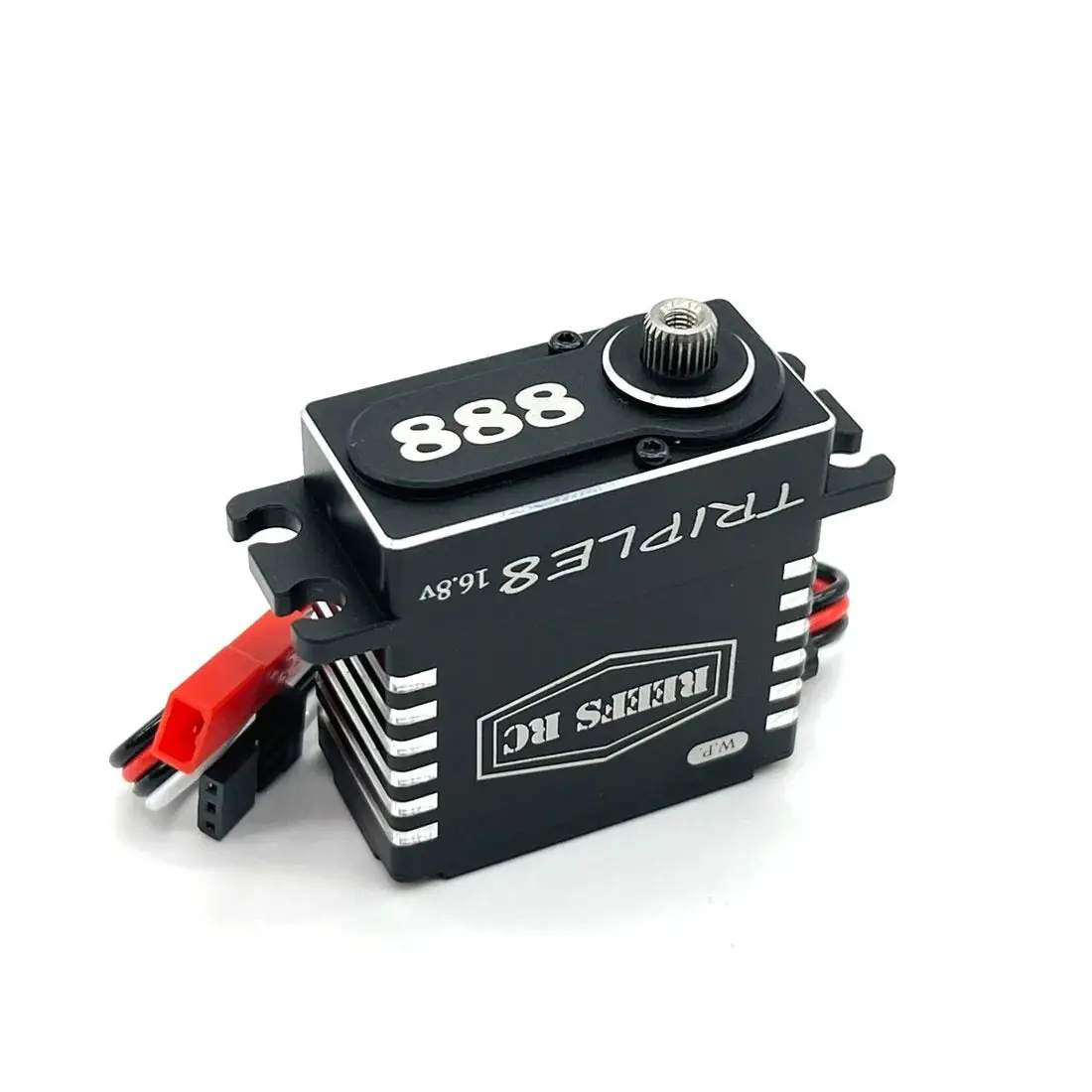

Triple 8 4S Direct-Drive Servo – Model Reefs124

Description

SPECIFICATIONS:

• High Torque High Speed Brushless Servo
• IP67 Rated WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Voltage: 12V – 16.8V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 3 Ball Bearings / Weight: 3.12oz
• LWH: 1.57 x .78 x 1.63 / 40x20x41.5mm
• Torque: 640oz (46.1kg)@ 12v / 765oz (55.1kg)@ 14.4v / 860oz (61.9kg)@ 16v / 917oz (66kg)@ 16.8v
• Speed: .13sec @ 12v /.11sec @ 14.4v / .10sec @ 16v / .09sec @ 16.8v
• Spline: 25T
• Dead Band Width: 2¦Ìs
• Unload Current: 450mA@12.0V
  530mA@14.4V
  600mA@16.0V
  630mA@16.8V
• Load Current: 4600mA@12.0V
  4900mA@14.4V
  5200mA@16.0V
  5500mA@16.8V

Item# REEFS124
