Description

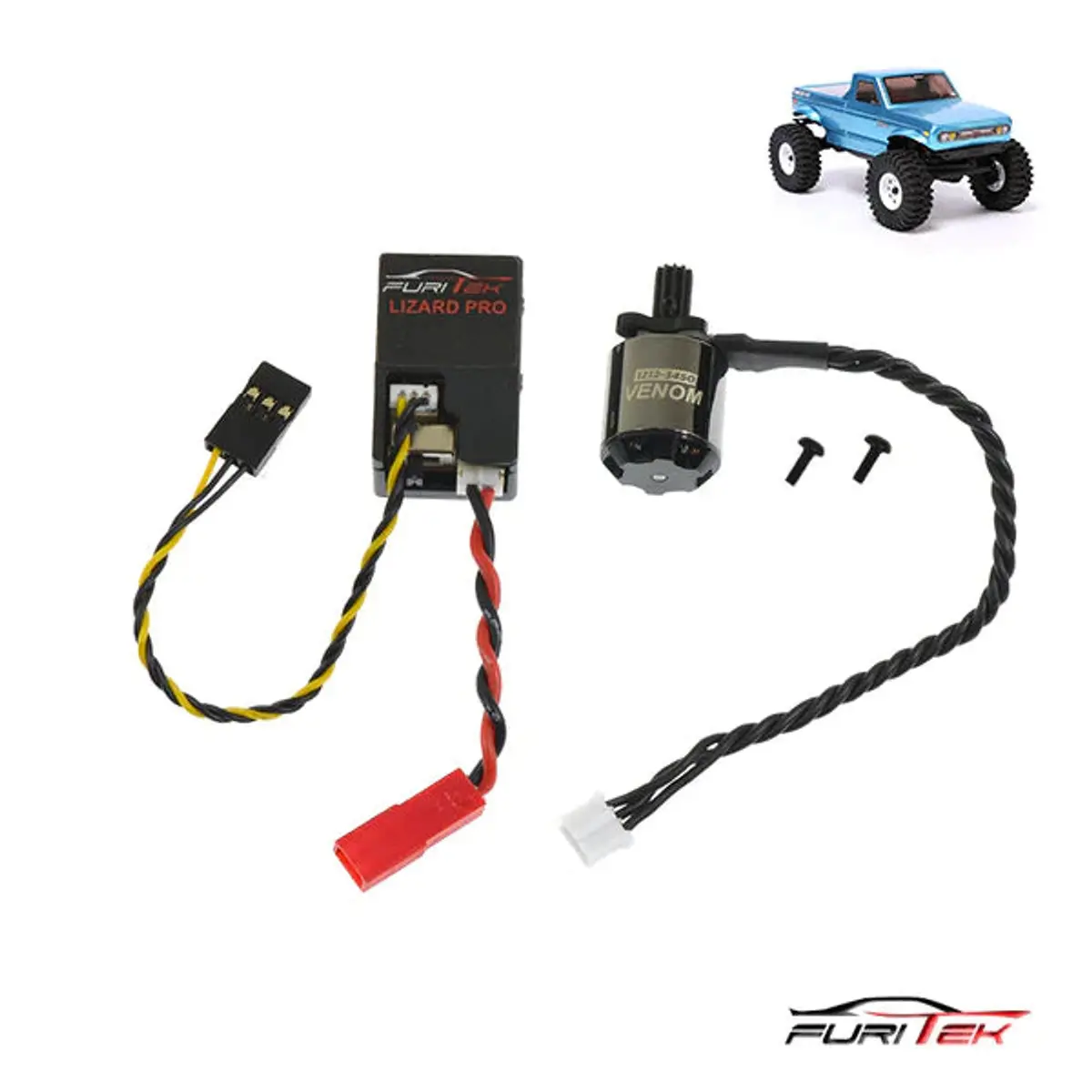

FURITEK STARTER 118 2S BRUSHLESS POWER SYSTEM FOR REDCAT ASCENT-18
SUPPORT 2S LIPO only
Features:
– Plug & play
– A smaller and lighter brushless motor VENOM for low C.G. setup same like stock
– High performance and powerful 30A/50A brushless ESC with FOC technology
– Wifi module for wireless connection
– Precision CNC steel pinion for long-lasting operation
– Powerful at low speed but also more powerful and fast at high speed
– High torque at low speed crawling
– Super smooth without any cogging at both low and high speed operation¬
– Compatible with stock battery
– Lifetime FREE firmware upgrade!
Package includes:
– 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR REDCAT ASCENT-18 WITH FOC TECHNOLOGY with enclosing plastic case
– 1 x built-in wifi module
– 1 x VENOM 1212 3450KV brushless motor
– 1 x 12T CNC Steel Pinion
Motor Features and Specs
Features:
– 12 Pole hi-torque motor design.
– Super thin (0.2 mm) stator laminations—lower eddy losses—maximizes efficiency.
– Japansese NMB –High RPM ABEC5 bearings.
– Precision balanced rotor, smoothness for best reliability and maximum RPM.
– CNC machined 6061 T6 billet aluminum heatsink can.
– Precision engineered for maximum energy conversion.
– High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.
Specifications:
– KV (RPM/Motor) – 3450
– No-load current @10V – 0.7A
– Watt – 120W
– Battery – 2S
– Resistance – 0.16 Ohms
– Max Current – 10A
– Slot/Pole – 12
– Motor size (mm) – 15.5×20.6
– Shaft (mm) – 1.5×6
– Weight (g) – 17.5
ESC Features and Specs
Features:
– Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
– FOC (Field-oriented control) technology
– Plug & Play designed for REDCAT ASCENT-18 crawlers
– 5V/ 6.5V 2.5A Built-in BEC (config via app)
– Support 2S-3S lipo battery – Mini size and lightweight
– Super easy programming via App on both Android and IOS
– Firmware update available (Bluetooth module required)
– Real-time telemetry up to 10Hz
Specifications:
– Support 2S-3S lipo battery (ESC support 3S only, motor only support 2S)
– BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
– Constant current: 30A
– Burst current: 50A
– Built-in power switch
– Built-in wifi module
– Dimension (mm): 28(L)x 15.5(W)
– Weight: 3.7 gram
